| ENGINE |
| Engine |
686cc,Liquid cooled,5-valve, 4-stroke,1-cylinder |
| Bore x Stroke |
102mm x 84mm |
| Compression Ratio |
9.2:1 |
| Max. Power |
33.5hp/5000-5500rpm |
| Max Torque |
40.9N.m/4000rpm |
| Fuel Supply |
Electric Inject (RFI) |
| Ignition |
ECU |
| Starting |
Electric |
| Transmission |
Automatic: L-H-N-R (V-Belt) |
| Drive Train |
Shaft (2WD, 4WD limited slip, 4WD Differential Lock) |
|
| CHASSIS |
| Suspension Front |
Independent double A-arm |
| Suspension Rear |
Independent double A-arm |
| Brakes/Front |
Dual ventilated hydraulic disc |
| Brakes/Rear |
Dual ventilated hydraulic disc |
| Tire Front |
AT26 x 9-12 radial |
| Tire Rear |
AT26 x 10-12 radial |
|
| DIMENSIONS |
| LxWxH |
154 x57.5×74 inches |
| Seat Height |
31.5inches |
| Wheelbase |
113 incehs |
| Ground Clearance |
13 inches |
| Fuel Capatity |
7.66 gal |
| Dry Weight |
1540 lbs |
| Bed Capacity |
400 lbs |
| Towing Capacity |
1200 lbs |
|
| OTHER |
| Standard Equipment |

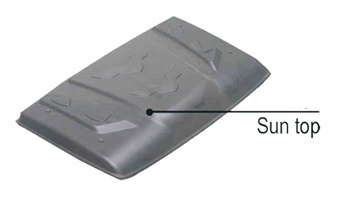

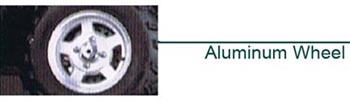

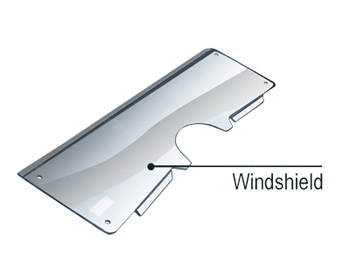

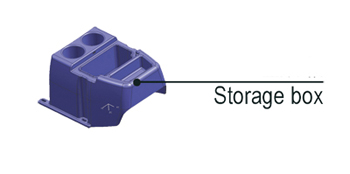

Suntop,Windshield,Aluminum wheels,Storage box,Winch, Light Kit(Turn signals
and Mirrors) |
| Color selection |

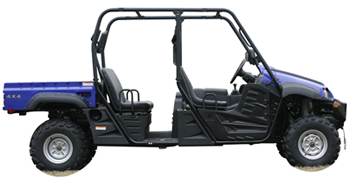

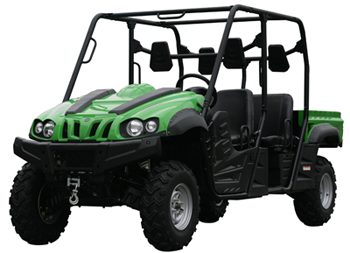

Red/Blue/Dark Green/Green/VISTA Yellow Camouflage/Black/Silver |
| DOWNLOAD |
| UTV700-4 Flyer |
Download |
|
|
|
 LIGHT GREEN.jpg)

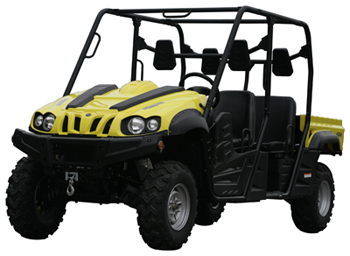

 YELLOW.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
 BLUE.jpg)

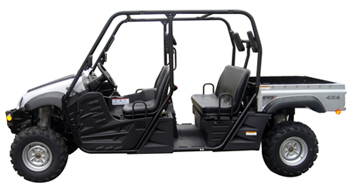

 SILVER.jpg)
